[선형 자료 구조]

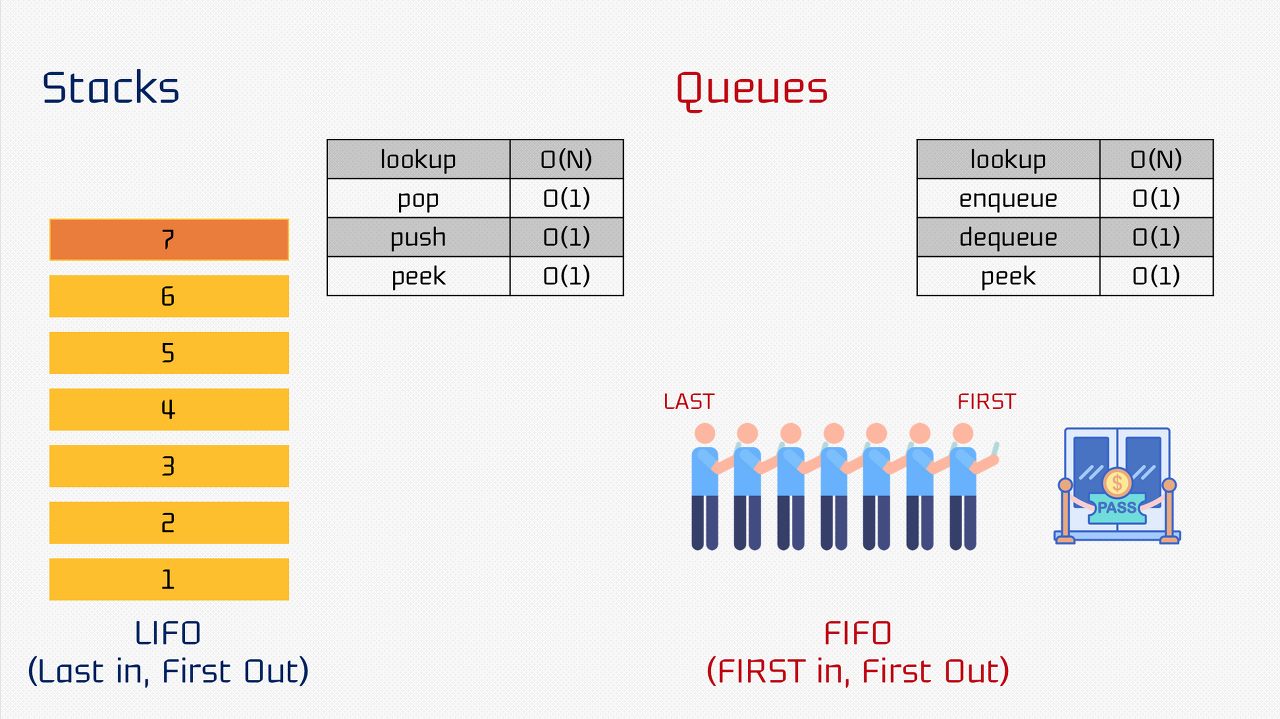

스택(Stack) & 큐(Queue)
스택은 흔히 자바스크립트 엔진에서 콜 스택이 제거되는 방식과 동일하다. 마지막으로 삽입된 element가 가장 먼저 제거되는 방식으로 LIFO(Last in, first out) 혹은 FILO(First in, last out) 구조이다. 재귀 알고리즘, 웹 브라우저의 뒤로가기, 실행 취소(undo) 등이 사용된다.
스택의 시간복잡도
- Insertion: O(1)
- Delete: O(1)
- Search: O(N)
JavaScript에서 스택을 구현하는 것은 간단한 배열을 사용하여 O(1)에서 수행할 수 있지만 이를 통해 push pop을 사용하는 경우 대기열은 삽입에 O(1)을 사용하고 최악의 경우 O(n)을 사용해야 합니다.
삽입과 제거 모두에 대해 O(1)에서 대기열을 구현할 수 있는 더 나은 시간 복잡도 접근 방식은 다음과 같이 를 사용하여 수행할 수 있습니다.
class Stack {
constructor() {
this.elements = {};
this.length = 0;
}
push(element) {
this.length++;
this.elements[this.length] = element;
}
pop() {
const removed = this.elements[this.length];
delete this.elements[this.length];
this.length--;
return removed;
}
peek() {
return this.elements[this.length];
}
}
큐는 줄서기와 같은 개념으로 FIFO(First in first out)구조이다. BFS, 캐시(Cache), 인쇄 대기열, 콜센터, 프로세스 관리, 티켓 카운터 등이 사용된다.
큐의 시간 복잡도
- Insert : O(1)
- Delete : O(1)
- Search : O(N)
class Queue {
constructor() {
this.elements = {};
this.head = null;
this.tail = null;
}
enqueue(element) {
this.elements[this.tail] = element;
this.tail++;
}
dequeue() {
const item = this.elements[this.head];
delete this.elements[this.head];
this.head++;
return item;
}
peek() {
return this.elements[this.head];
}
get length() {
return this.tail - this.head;
}
get isEmpty() {
return this.length === 0;
}
}
배열(Array) & 연결 리스트(Linked List)

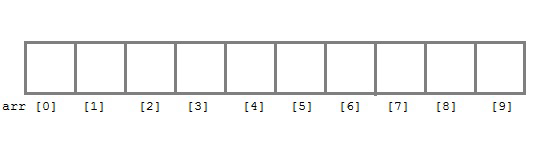

배열은 데이터를 물리적 주소에 순차적으로 저장하며(=논리적 주소와 물리적 주소가 같다.) 인덱스를 가지고 있어 바로 접근할 수 있어서 접근 속도가 빠르다.인덱스를 알고 있다면 O(1)의 시간 복잡도로 접근할 수 있다. 삽입과 삭제에 있어서는 O(1)에 접근한 뒤 데이터를 모두 당기거나 밀어야 하므로 시간이 더 걸린다.
어느 원소를 삭제한다고 할 때, 배열이 연속성이 깨져 빈 공간이 생기며 삭제한 원소보다 큰 인덱스를 갖는 원소들을 shift 해줘야하는 cost가 생기며 이 경우 시간 복잡도가 O(n)이 된다. 삽입도 마찬가지로 첫 번째 원소에 삽입한다면 전부 shift 해줘야 하므로 O(n)가 된다. 데이터의 추가/삭제를 위해서 임시 배열을 생성하고 복제하는데 있어 시간이 오래 걸린다.
- 사용하기 간단하다.
- 물리적 주소와 논리적 주소가 일치한다.
- Random Access(무작위 접근)가 가능하다.
- 배열의 처음이나 중간에서 원소를 삽입/삭제 하는데 임시배열을 복제하고 있어 시간이 오래 걸린다.
- 리스트의 크기가 정해져 있는 경우 크기를 재조정하는데 많은 연산이 필요하다.
- 인덱스 기준으로 어디던지 참조가 가능하다.
- 모든 데이터 유형을 저장할 수 있으며, 배열도 포함됩니다. (다차원 배열)
연결리스트는 각 노드가 데이터 필드와 다음 노드에 대한 참조를 포함하는 노드로 구성된 포인터를 사용해 연결하는 리스트. 특정 데이터에 접근할 때 인덱스로 바로 접근할 수 있었던 배열과 달리 첫 노드부터 원하는 노드까지 링크를 따라가야 접근이 가능하기 때문에 접근 속도는 배열에 비해 느리다. 반대로, 데이터를 삽입/삭제 할 때는 물리적 주소에 구애받지 않고 앞/뒤 노드의 주소만 끼워 넣을 주소로 바꿔주면 되기 때문에 삽입/삭제는 배열보다 빠르다.
- 마지막 항목은 NULL을 가리킨다.
- 프로그램이 수행되는 동안 크기가 커지거나 작아질 수 있다.
- 포인터를 위한 메모리가 필요하지만 낭비하는 공간이 없다.
- 연속되는 항목들이 포인터로 연결된다.
- 무작위 접근이 불가능하며 순차적 접근만 가능하다.
- 데이터를 추가하기 위해 새로운 노드를 생성하여 연결하므로 추가/연산이 빠르다.
- 리스트의 크기에 상관없이 데이터를 추가할 수 있다.
자바스크립트에서, (Singly) 링크드 리스트는 이런식으로 생겼다.
const list = {
head: {
value: 6
next: {
value: 10
next: {
value: 12
next: {
value: 3
next: null
}
}
}
}
}
};
다음과 같이 구현된다.
// Singlely Linked List
class Node {
constructor(element, next = null) {
this.element = element;
this.next = next;
}
}
class LinkedList {
constructor() {
this.head = new Node('init');
}
append(newElement) {
const newNode = new Node(newElement);
let current = this.head;
while(current.next !== null) {
current = current.next;
}
current.next = newNode;
}
insert(newElement, item) {
const newNode = new Node(newElement);
let current = this.find(item);
newNode.next = current.next;
current.next = newNode;
}
find(item) {
let current = this.head;
while(current.element !== item) {
current = current.next;
}
return current;
}
remove(item) {
let prev = this.findPrev(item);
prev.next = prev.next.next;
}
findPrev(item) {
let current = this.head;
while(current.next !== null && current.next.element !== item) {
current = current.next;
}
return current;
}
toString() {
let array = [];
let current = this.head;
while(current.next !== null) {
array.push(current.next.element);
current = current.next;
}
return array;
}
}
let linkedList = new LinkedList();
linkedList.insert("A", "head");
linkedList.insert("B", "A");
linkedList.insert("C", "B");
linkedList.remove("B");
linkedList.append("D");
linkedList.append("E");
console.log(linkedList.toString())

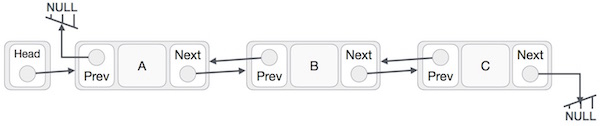

// Doubely Linked List
class Node {
constructor(element) {
this.element = element;
this.prev = null;
this.next = null;
}
}
class DoublelyLinkedList {
constructor() {
this.head = new Node('head');
}
insert(newElement, item) {
let newNode = new Node(newElement);
let currentNode = this.find(item);
if(currentNode.next === null) {
newNode.next = null;
newNode.prev = currentNode;
currentNode.next = newNode;
} else {
newNode.next = currentNode.next;
newNode.prev = currentNode;
currentNode.next.prev = newNode;
currentNode.next = newNode;
}
}
find(item) {
let currentNode = this.head;
while(currentNode.element !== item) {
currentNode = currentNode.next;
}
return currentNode;
}
remove(item) {
let currentNode = this.find(item);
if(currentNode.next !== null) {
currentNode.prev.next = currentNode.next;
currentNode.next.prev = currentNode.prev;
currentNode.next = null;
currentNode.prev = null;
}
}
}
